QB FAQs: How Can I Make My Drain Disappear?

You’ve designed the perfect shower. It’s absolutely beautiful. There’s just one problem: you can’t stand the look of traditional drains.

traditional bathroom QB FAQs: How Can I Make My Drain Disappear?
The center drain just messes up your impeccably planned tile design. Plus, you have to pitch the shower in four directions for proper drainage.
Enter the decorative drain. And no, not just the typical fancied-up grate that doesn’t solve your problems:
newport brass 233 603 6 shower drain 176470 QB FAQs: How Can I Make My Drain Disappear?

Newport Brass 6″ Shower Drain

…but a drain that all but vanishes into your shower floor while giving you practically unlimited configuration options.
Linear and tile-ready drains are the solution to your shower-drain woes.
CalFaucets StyleDrain Tile slate2 QB FAQs: How Can I Make My Drain Disappear?

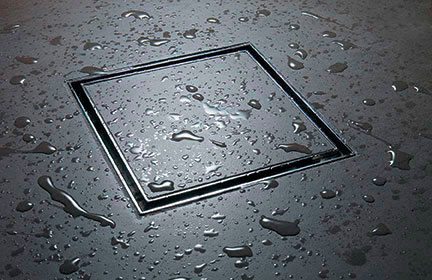

California Faucets StyleDrain®

A tile-ready drain allows one to cover the traditional grate with the tile or solid-surface material used on the rest of the shower floor. This type of drain is ideal for consumers who are working with a new or existing shower floor pitched in four directions and wish to hide the drain; it’s installed as a “regular” drain but can be made to blend in with the flooring.

infinity drain tdb 20 a kit with abs bonded flange drain body 8 l x 8 w 175246 QB FAQs: How Can I Make My Drain Disappear?

Infinity Drain TDB Series

If you’d prefer to do away with the center drain, a linear drain is a must-have. As its name suggests, a linear drain has a long and narrow “line” shape, so it can be installed in a one-directional-pitched shower.

infinity drain s ag 3860 site sizable 60 complete kit 59 12 l x 1 1316 w x 1 58 h 175113 QB FAQs: How Can I Make My Drain Disappear?

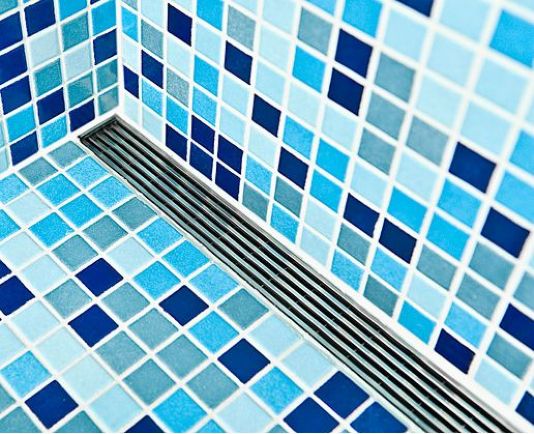

Infinity Drain AG Series

infinity drain s as 6560 site sizable 60 complete kit 60 18 l x 2 78 w x 1 h 175155 QB FAQs: How Can I Make My Drain Disappear?

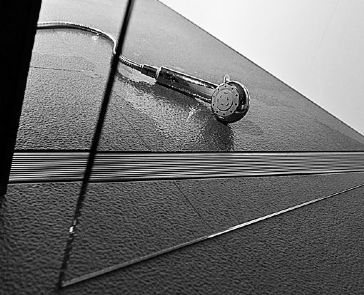

Infinity Drain AS Series

Linear drains work by allowing the water to flow through the drain and into a trough, or channel, beneath the shower floor, where it enters the regular drainage system.

Untitled QB FAQs: How Can I Make My Drain Disappear?

The linear drain may be installed practically anywhere in your shower: at the threshold (whether there is a barrier [door or curb] or not), along the wall, under a shower bench… the possibilities are practically endless.

700 infinity drain liniear side wall QB FAQs: How Can I Make My Drain Disappear?

700 infinity drain threshold linear QB FAQs: How Can I Make My Drain Disappear?

700 infinity drain under bench QB FAQs: How Can I Make My Drain Disappear?

Leading linear drain manufacturer Infinity Drain supplies drains that will work with any size shower. Their fixed-length drains, available in standard sizes, are installed as-is; revolutionary site sizable drains may be cut down by the installer to fit exactly.

Infinity Drain’s unique fixed flange drains feature a flange around the edge of the drain; water runs through the top of the drain and the trough, bypassing the sub-floor and eliminating the need for the second layer of mortar required by most drain installations.

infinity drain ffas 2548 fixed flange 48 complete kit 50 18 l x 4 12 w x 4 316 h 210613 QB FAQs: How Can I Make My Drain Disappear?

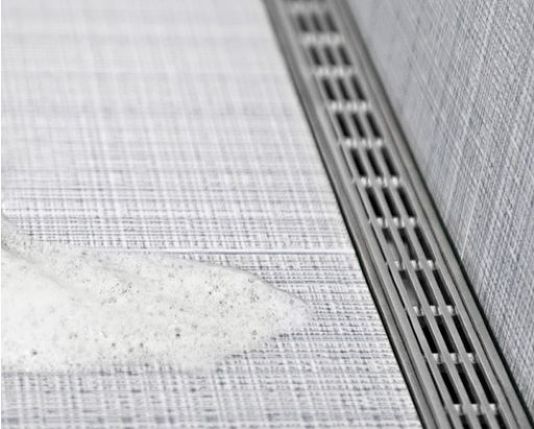

Infinity Drain FFAS Series with Fixed Flange

If you’re still not wild about a linear drain, despite its many decorative grate options, you may want an invisible linear drain. Not a problem – choose a tile-ready linear drain!

infinity drain td 50 2a kit with abs drain body 2 3 outlet 20 l x 3 w 175247 QB FAQs: How Can I Make My Drain Disappear?

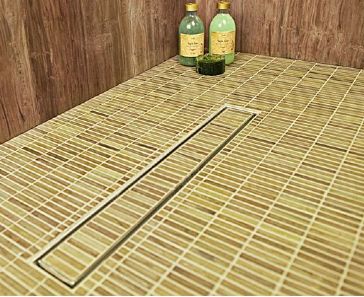

Infinity Drain TD Series

Having trouble locating a spot for your drain due to existing plumbing access? A side outlet drain directs the water through a horizontal outlet (underneath the floor) to the drainage system.

side outlet QB FAQs: How Can I Make My Drain Disappear?
Voilà! You’ve learned the secret of the vanishing drain.

How would you incorporate a linear and/or tile ready drain into your shower?

[Special thanks to Dov from our patient, dedicated and knowledgeable sales team for his invaluable guidance in the crafting of this post.]
